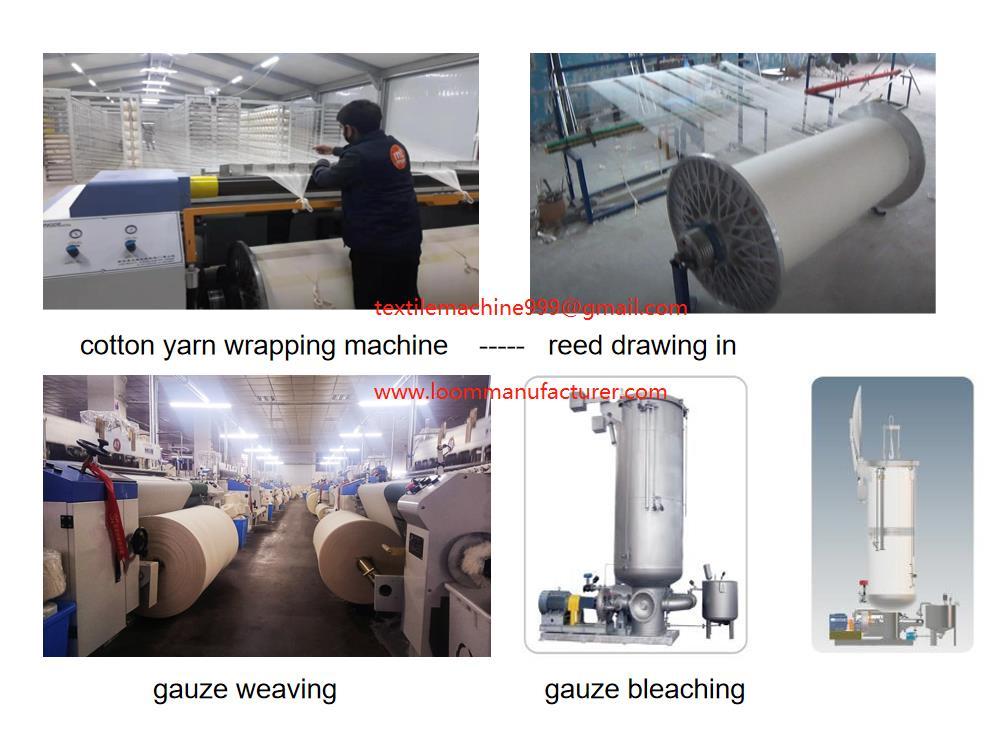

It is special for gauze weaving process.

Main Specification

• Winding Width:2300mm/2800mm/3400mm（the length of press roller:1860mm）

• Dia. of Warp Beam Flange:≤800mm

• Warping Speed:≤150m/min；

• Beam direct driving, frequency conversion motor to realize warping speed step-less setting and constant linear Speed;

• press roller and Beam double counting lengths, High Precision

• Pneumatics Warp-Beam mounting and doffing ;

• Installed electric power, kW:15KW/18.5KW/25KW

• Electric power consumption,<15KW

• W type adjustable reed, Electric control density and wagging;

• Equipped with multi-function interface panel, easy to operate

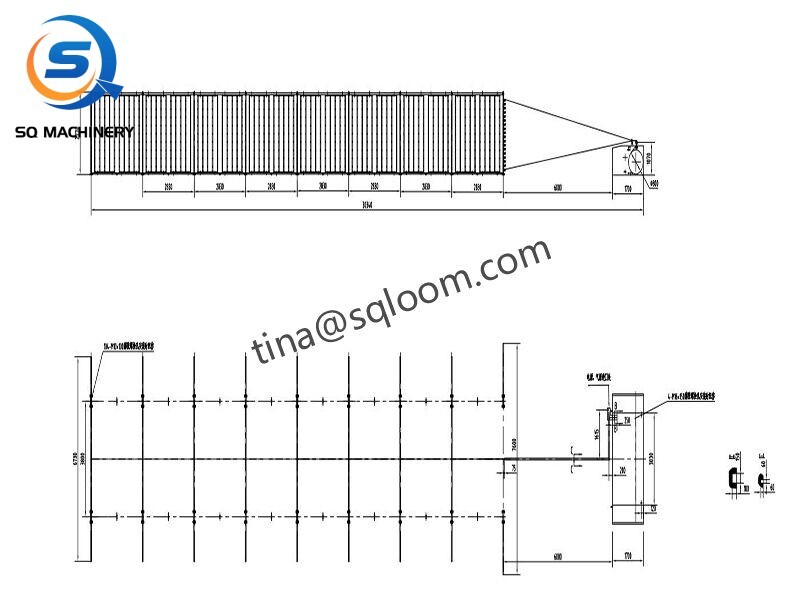

• Warp Creel Type, V Shape  turning-over style, outside guide yarn；

• No.s of Ends :2208/2480/2560/2800/3200(depends on fabric warp density)

• Pitch of Spindles :Up-down 270mm×Front-back 270mm；

• No.s of Layer:8 Layer




Main configuration
